Pipetting mode

tip

"Pipetting" mode can aspirate and dispense liquid at a variable volume.

1. How to use the pipetting mode

1.1 Enter pipetting mode​

Select [Pipetting] in the mode menu to enter the pipetting mode.

Mode Menu
Mode Menu

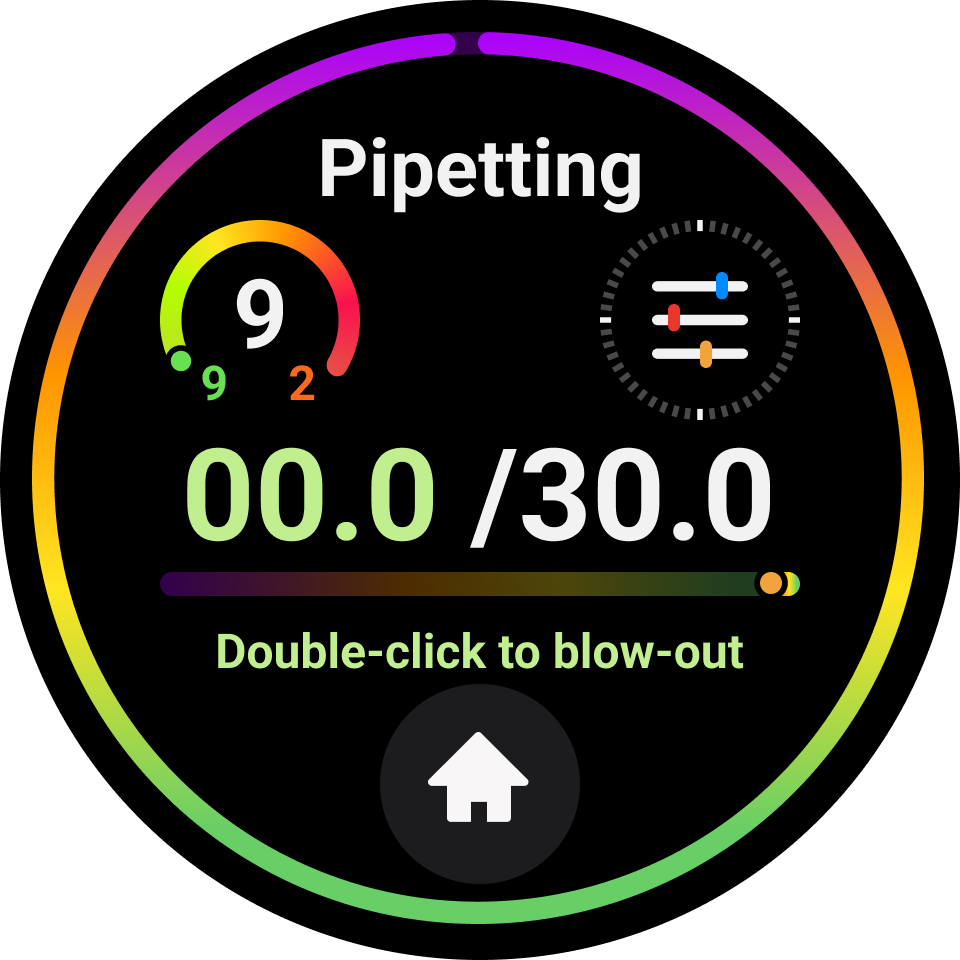

Pipetting Mode
Pipetting Mode

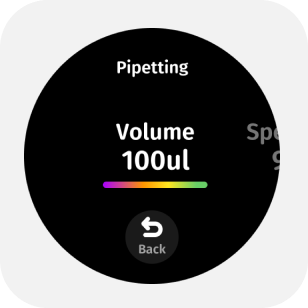

1.2 Parameter adjustment​

When the device is not inhaling liquid, you can click the upper part of the main screen to enter the parameter menu.By swiping or tapping the screen, you can adjust in the parameter menu:

  • Aspirate/dispense volume

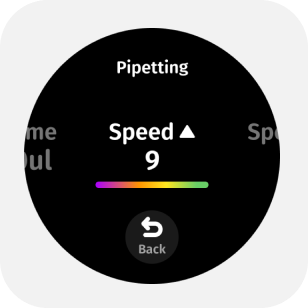

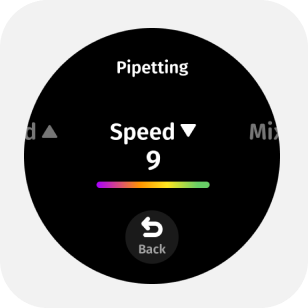

  • Aspirate and dispense speed

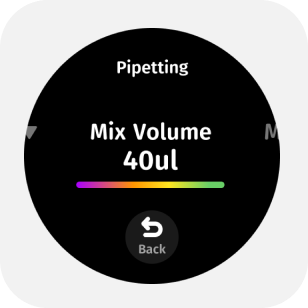

  • Mixing volume

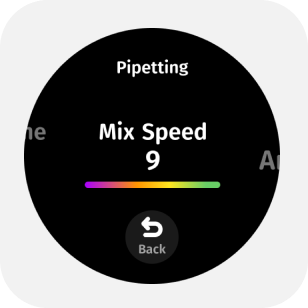

  • Mixing speed

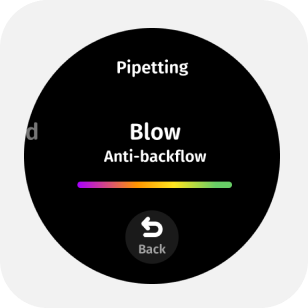

  • Blow-out option

Once settings are complete, tap the "✔" on the screen or "Back" to confirm or return to the main page, or gently press the trigger button to confirm.

1.3 Install the Tip​

Select a tip that matches the pipette's range, gently press, and insert the matching tip onto the nozzle.

1.4 Start Pipetting​

Gently press the trigger to start the aspiration/dispensing operation.

1.5 Liquid Blow-Out​

After completing the aspiration and dispensing cycle, double-click the trigger to blow out liquid.

1.6 Mixing​

When there is no liquid in the tip, press and hold the trigger button to mix.

1.7 Tip Ejection​

Press down the tip ejection button to remove the tip.
